Corrugated Steel Sheet Specifications and Style

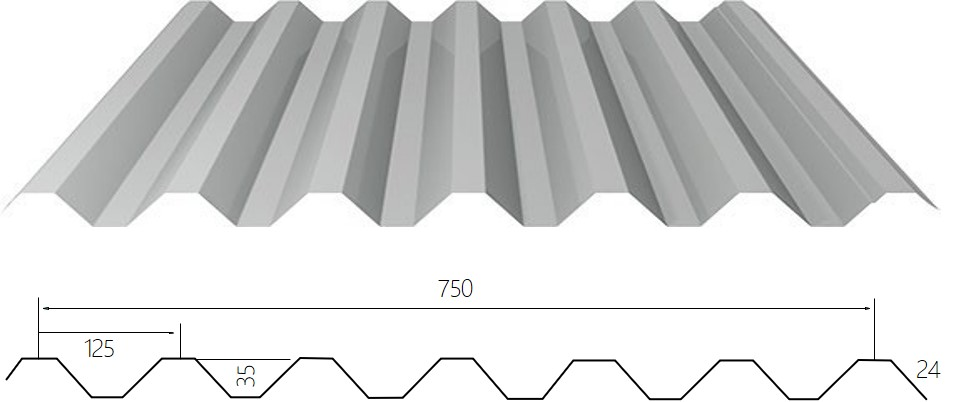

Model | YX35-125-750(V-125) |
Effective Coverage Width (mm) | 750 |
Expanded Width (mm) | 1000 |
Plate Thickness (mm) | 0.5 – 0.6 |
Section Moment of Inertia (cm4/m) | 10.61 – 12.74 |
Section Resistance Moment (cm/3m) | 6.12 – 7.33 |
certification

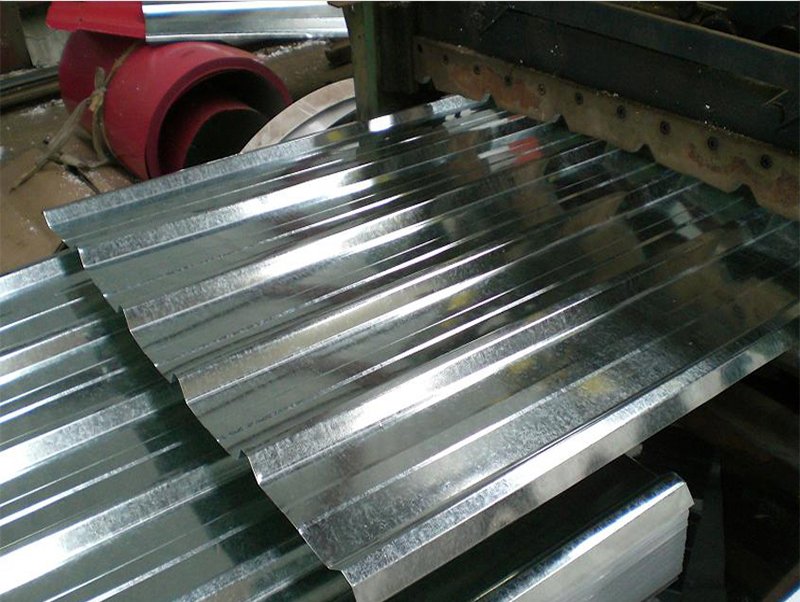

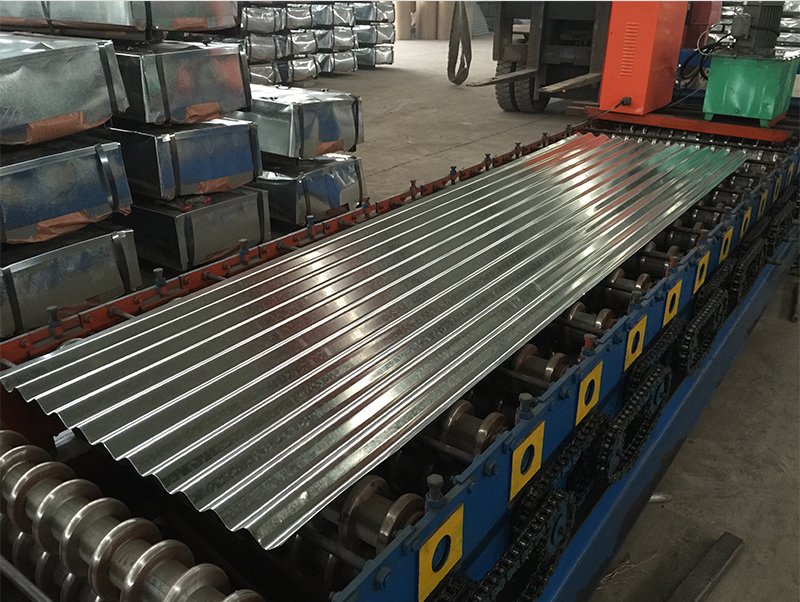

Sheet Production Line
why chooseYX35-125-750(V125)
1. Environmentally Friendly and Low Maintenance
Meets modern green building requirements, with a low carbon footprint and easy maintenance.
Green and Recyclable: Made of cold-rolled steel, 100% recyclable, pollution-free, and compliant with environmental policies in most countries.
Energy-Saving Option: Can be installed with insulation materials to improve thermal performance and reduce energy consumption for heating and cooling.
2. Strict Quality Standards, Safe and Reliable
The product strictly adheres to international and national standards, ensuring construction safety and peace of mind for users.
Compliant with Standards: Complies with ASTM A653, EN 10326, JIS G3302, and GB/T 12754 standards, and has passed mechanical performance (tensile strength, elongation) and coating performance tests.
Fire Resistance: Fire rating up to B1 (non-combustible), effectively slowing the spread of fire and meeting the fire safety requirements of construction projects.
Construction Safety: Smooth surface with no sharp edges, reducing the risk of construction accidents; secure connections after installation.
Frequently Asked Questions
Why choose a high rib profile like YX35-125-750 for industrial roofs?
The 35mm high rib (V125) provides exceptional water-carrying capacity and prevents leakage during heavy downpours. It is also strong enough to support maintenance workers walking on the ribs during installation.
What thicknesses are available for the V125 high rib steel sheet?
We typically manufacture YX35-125-750 in thicknesses ranging from 0.4mm to 1.0mm, depending on your project’s span and structural requirements.
