Elevate your projects with Bomis Steel Orange Peel Textured PPGI/PPGL, where sophisticated aesthetics meet industrial-grade resilience. Unlike standard smooth finishes, our textured coating provides a unique tactile dimension that significantly enhances surface durability.
Superior Masking: The distinctive “orange peel” grain effectively diffuses light, hiding surface imperfections and minor scratches.
Enhanced Longevity: Engineered with advanced paint systems for maximum UV resistance and corrosion protection.
Versatile Palette: Available in an extensive range of custom colors to match any architectural vision.
Formability: High-performance coating that remains flexible and crack-resistant during bending and profiling.
Elevate Your Projects with Orange Peel Textured Steel

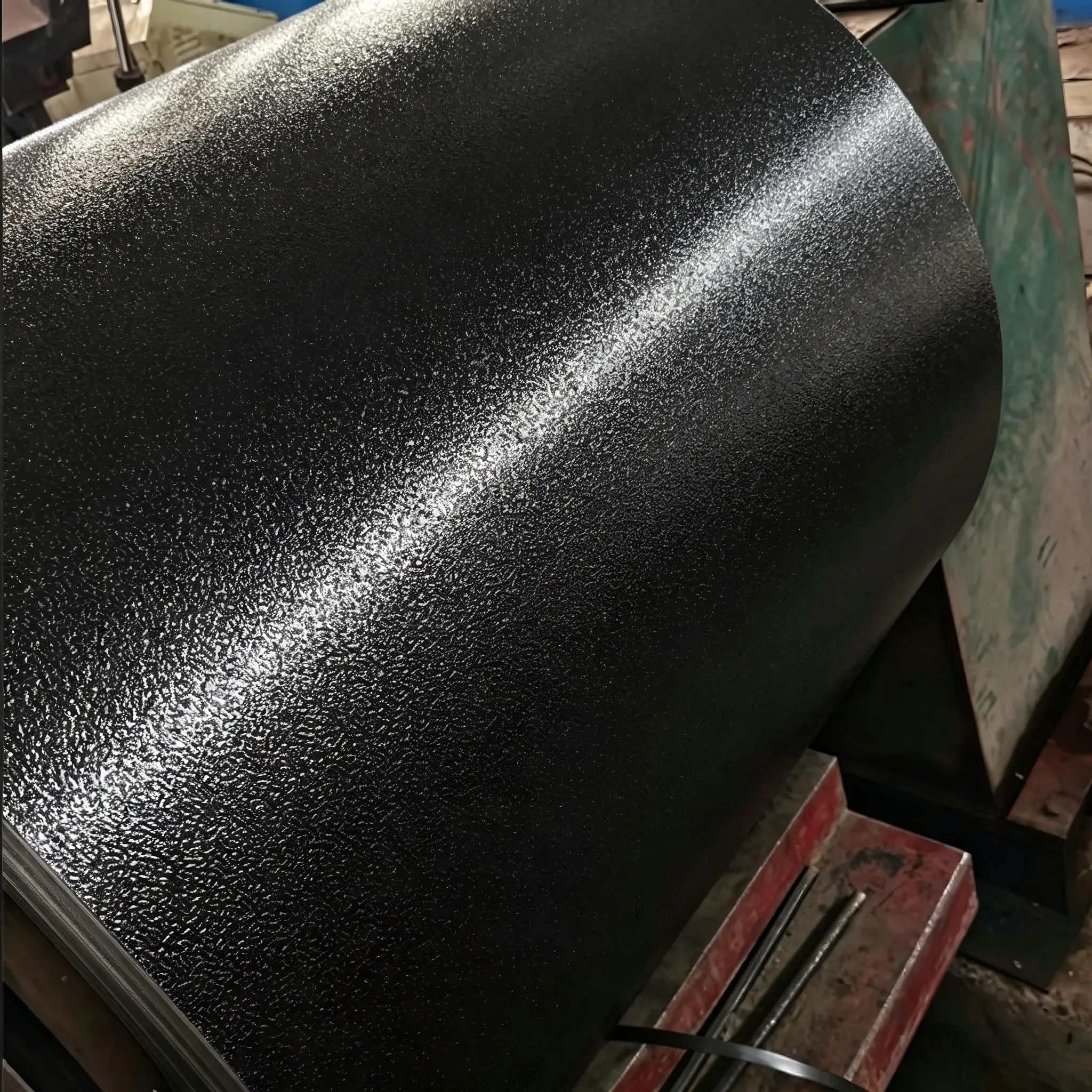

Our Orange Peel Prepainted Steel Coils are the result of precision engineering and aesthetic refinement. By applying a high-performance coating to premium GI or GL/Aluzinc substrates, we utilize a controlled baking and curing process to achieve a signature micro-embossed finish.
The result is a sophisticated, matte surface that mimics the organic texture of citrus peel, offering a high-end look that stands out in any architectural application.
| Specification | Details |
| Product Name | Orange Peel Textured Prepainted Steel Coil (PPGI / PPGL) |
| Thickness Range | 0.3mm – 1.5mm |
| Available Widths | 1000mm, 1200mm, 1220mm, 1250mm (Custom slitting available) |
| Substrate Types | Hot-Dip Galvanized (GI), Galvalume / Aluzinc (GL) |
| Zinc/AZ Coating | Z: 30–275 $g/m^2$ |
| Base Metal Grades | DX51D, DX52D, DX53D, S250GD, S350GD, S550GD, SPCC, SGCC, ASTM A653, etc. |
| Compliance Standards | AISI, ASTM, BS, DIN, GB, EN, JIS |
| Paint Systems | PE, SMP, HDP, PVDF (High-Performance Coatings) |
| Coating Structure | 2/1 (Double Coat, Single Bake) or 2/2 (Double Coat, Double Bake) |
| Coil Weight | 3 – 8 Metric Tons |
| Minimum Order (MOQ) | 18 Tons (Negotiable based on specifications) |
| Packaging | Seaworthy Export Packaging: Protective film, moisture-proof paper, and galvanized steel casing. |
Engineered for Excellence: The Advantages of Orange Peel Texture
Dual-Layer Corrosion Defense: Our premium GI/GL substrates are fortified with an advanced multi-stage coating system. This synergy creates a formidable barrier against oxidation and chemical exposure, significantly extending the product’s service life in harsh environments.
Tactile Resilience & Self-Maintenance: The engineered “orange peel” grain does more than look good—it increases surface hardness. This micro-texture naturally conceals fabrication flaws, resists abrasions, and features hydrophobic properties for enhanced stain resistance and easy-clean maintenance.
Acoustic & Visual Comfort: Designed for modern architecture, the matte finish eliminates harsh light reflections (glare). Simultaneously, the irregular surface geometry helps diffuse sound waves, contributing to a quieter, more controlled indoor acoustic environment.
Precision Fabrication: Optimized for high-speed processing, our coils maintain coating integrity during rigorous bending, stamping, and roll-forming, ensuring a flawless finish from the factory to the job site.
1. High-End Home Appliances & Consumer Electronics
Our Orange Peel Textured coils provide a premium, smudge-resistant finish for high-visibility equipment.
White Goods: Premium exterior shells for refrigerators, washing machines, and air conditioners.
Kitchen Solutions: Oven panels, microwave casings, and custom cabinetry.
Electronics: Protective enclosures for control consoles and AV equipment.
2. Architectural & Infrastructure Landmark Projects
Designed for modern aesthetics and long-term structural integrity.
Civic Buildings: Non-reflective roofing and cladding for airports, museums, and libraries.
Commercial Hubs: High-traffic retail facades, shopping complexes, and corporate HQs.
Modular Construction: Side panels for prefabricated housing and high-specification shipping containers.
3. Industrial & Specialized Environments
Engineered for hygiene, durability, and logistical efficiency.
Controlled Environments: Anti-static and easy-clean panels for cleanrooms and laboratory facilities.
Logistics & Storage: Heavy-duty cladding for automated warehousing and cold-chain distribution centers.
4. Interior Design & Functional Aesthetics
Interior Systems: Decorative ceiling tiles, modular partitions, and high-durability accent walls.
Commercial Fit-outs: Sophisticated wall coverings for retail boutiques and modern office spaces.
1. What exactly is “Orange Peel” texture on steel coils?

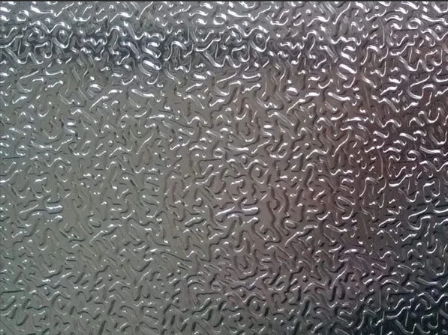

The “Orange Peel” texture is a specialized micro-embossed finish achieved through a specific coating formulation and baking process. It results in a fine, uniform, matte surface that resembles the skin of a citrus fruit. This texture is highly valued for its ability to diffuse light and hide surface imperfections.
2. What are the primary advantages of textured steel over smooth finishes?
Beyond the unique aesthetic, the orange peel texture offers several functional benefits:
Scratch & Abrasion Resistance: The raised pattern is harder to scratch and masks minor wear and tear.
Anti-Glare: The matte surface reduces specular reflection, making it ideal for large-scale architectural projects.
Flaw Concealment: It effectively hides small dents or substrate unevenness that would be visible on a high-gloss smooth surface.
3. Which substrate is better: GI or GL?
Both provide excellent protection, but the choice depends on your environment:
Hot-Dip Galvanized (GI): Best for general construction and standard appliance manufacturing.
Galvalume/Aluzinc (GL): Offers superior corrosion resistance in highly corrosive or coastal environments due to the aluminum-zinc alloy coating.
4. Can I customize the color and paint type for textured coils?
Yes. We offer a full spectrum of colors (RAL, Pantone, or custom samples). You can also choose the paint system based on your durability requirements:
PE (Polyester): Standard indoor/outdoor use.
HDP (High-Durability Polyester): Enhanced weather resistance.
PVDF: The gold standard for extreme UV and chemical resistance.
5. Does the texture affect the processing of the steel?
Not at all. Our Orange Peel Textured Steel is engineered for high flexibility. It can be cut, bent, stamped, and roll-formed just like smooth prepainted steel without the coating cracking or peeling, provided the correct T-bend specifications are followed.
