ASTM A653 PPGI Coil (G60 / G90) – Zinc Coated Prepainted Steel

ASTM A653 (G60 / G90)Prepainted Galvanized Steel Coil

ASTM A653 PPGI Coil (G60 / G90) – Zinc Coated Prepainted Steel

Place of Origin：Shandong,China

Delivery Time： 20 days

upply Ability:    5000 Tons per Month

colour:     We can customize the color based on your sample and the RAL color chart

MOQ:    18 Tons

Different minimum order quantities result in different product prices

If you need it, please contact our customer service as soon as possible

REQUEST A QUOTE

Technical Overview of ASTM A653 PPGI Coil (G60/G90)

Our ASTM A653 compliant Prepainted Galvanized Steel Coils are specifically engineered for the demanding requirements of the North American construction and industrial sectors. Unlike standard color-coated products, these coils utilize a high-purity zinc-coated substrate (Grade CS Type A, B, or Structural Steel) that ensures exceptional sacrificial protection against edge corrosion.

Zinc Coating Weight: G60 vs. G90

We provide precise control over the hot-dip galvanizing process to meet the stringent coating weight designations defined by ASTM A653:

  • G60 ($180g/m^2$): Optimized for standard outdoor applications, providing a balanced cost-to-performance ratio for roofing and wall panels.

  • G90 ($275g/m^2$): Designed for high-corrosive environments (coastal or industrial areas). The thicker zinc layer provides nearly 50% more service life compared to G60, meeting the highest durability standards for structural components.

Mechanical Properties & Formability

Following the ASTM A653/A653M standard, our coils are tested for:

  • Yield Strength: Consistent performance for structural reliability.

  • Ductility: Enhanced elongation properties allow for complex profiles without micro-cracking of the zinc or paint layers.

  • Flatness: Superior tension-leveled surface quality, critical for wide-span architectural cladding.

Key Specifications

Feature Specification
Standard ASTM A653 / A653M
Substrate Grade CS (Commercial Steel), FS (Forming Steel), SS (Structural Steel)
Zinc Designation G30, G60, G90
Surface Treatment Anti-fingerprint (AFP), Chromated, Oiled/Non-oiled
Color Accuracy $\Delta E \leq 1.0$ (based on RAL or customer sample)

ASTM A653 PPGI Coil (G60 / G90) – Zinc Coated Prepainted Steel Specifications

Thickness(mm)
0.12 – 1.5mm
Width(mm)
600 – 2000mm or as your request
Length(mm)
According to your requirements
Material
DX51D, DX52D, DX53D, Q235, Q345, SPCC, SGCC, A653, A653M
Standard
GB, JIS, EN, ASTM
Spangle Type
Zero spangle, small spangle, regular spangle, large spangle
Packaging
Standard export package or as per your requirementsFeatures

Certification

CertificationCertification

product testing

After the products are completed, they will undergo strict inspections before being packaged.

Steel coil quality inspection

ASTM A653 PPGI Coil (G60 / G90) – Zinc Coated Prepainted Steel Application Scenarios

  • Construction Industry (Most Mainstream)
    Commercial and Industrial Buildings: Roofs and exterior walls of factories and warehouses; G60 is suitable for inland temperate climates, while G90 is suitable for coastal or industrial areas with high corrosion environments; structural components such as purlins, studs, and rainwater systems; G90 is more suitable for long-term exposure scenarios.Civil Buildings: Residential roofs, balcony railings, garage doors; G60 offers high cost-effectiveness, while G90 is used for seaside , and can be combined with PVDF coating to improve weather resistance and color retention.Industrial and Agricultural Applications
    Industrial Equipment: Ventilation ducts, electrical control cabinets, automation equipment housings; G60 is suitable for dry indoor workshops, while G90 is suitable for high-humidity or chemically corrosive production environments.
    Agricultural Facilities: Granaries, feed silos, irrigation troughs; G90 is suitable for high-humidity southern or coastal farms, improving corrosion resistance and service life.Commercial Decoration: Billboards, light boxes, interior decorative panels; G60 + customized color coating can balance aesthetics and cost.

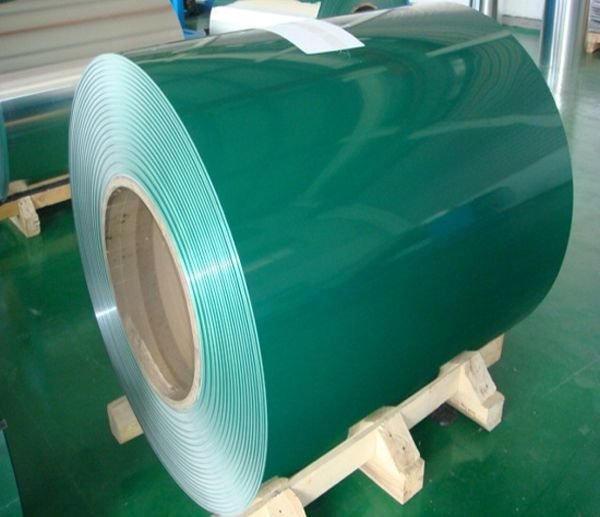

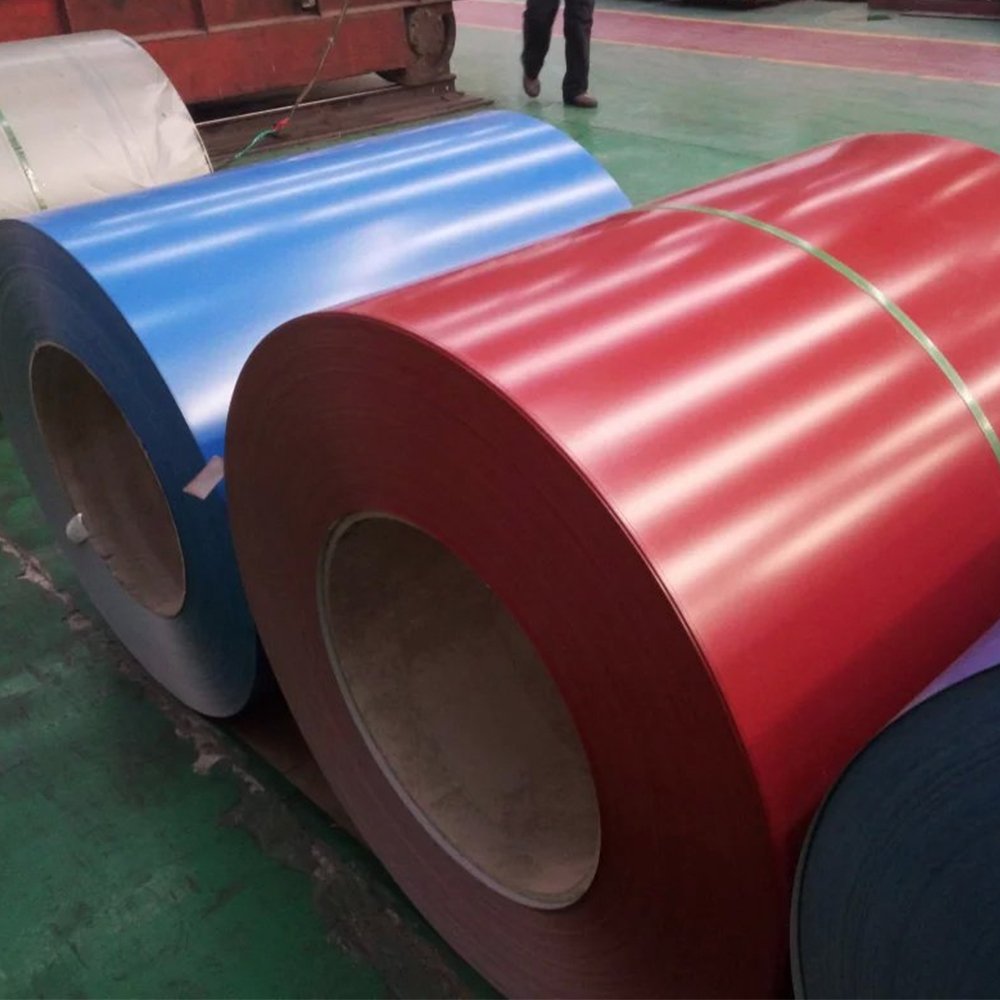

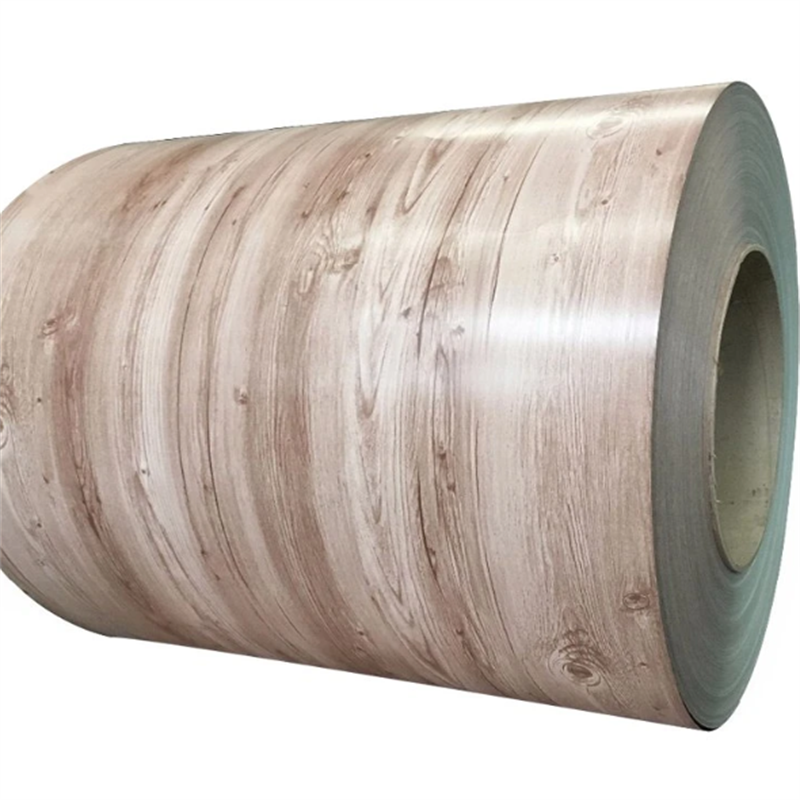

Product Showcase

ASTM A653 (G60 / G90)Prepainted Galvanized Steel CoilASTM A653 (G60 / G90)Prepainted Galvanized Steel Coil

FAQ about PPGI

1.what isASTM A653  G60 / G90 Galvanized Coil

ASTM A653/A653M is a standard issued by the American Society for Testing and Materials for continuous hot-dip galvanized / zinc-iron alloy coated steel plates and steel strips. G60/G90 are two of the main mainstream pure zinc coating weight grades, corresponding to a total weight of 0.6 oz/ft² and 0.9 oz/ft² on both sides respectively. They are widely used in fields such as construction, household appliances, and agriculture, and are suitable for different corrosive environments.

2.Are you a manufacturer or a trading company?

We are a factory with over 10 years of sales experience

3.How do you guarantee the quality?

1) Sourcing only from top-tier, certified mills.

2) Conducting our own rigorous in-house QC checks.

3) Providing a formal Mill Test Certificate and our quality warranty for every shipment.
