During the production of hot-dip galvanized steel coils, the molten zinc forms a distinctive crystalline texture on the steel surface as it cools and solidifies—a phenomenon commonly referred to within the industry as “spangle.” Depending on the specific parameters of the cooling process, galvanized surfaces are primarily categorized into two core structural types: Zero Spangle and Big Spangle.
These two surface finishes differ not only in their visual appearance but also in their physical properties, which dictate their respective optimal fields of application. Accurately distinguishing the characteristics of these two materials is crucial for ensuring the quality of end products and effectively controlling costs.
Zero Spangle Galvanized Steel Coil: The Perfect Substrate for Appliance Casings
Zero spangle galvanized steel coils utilize specialized cooling processes—such as adding specific elements to the molten zinc bath or employing rapid water-mist cooling—to inhibit the growth of zinc crystals. This results in an extremely smooth and uniform surface where the zinc spangles (crystalline patterns) are virtually invisible to the naked eye.
Key Advantage: Exceptional surface flatness with no crystalline protrusions.
Why It Is Ideal for Appliance Casings: Modern home appliances—such as refrigerators, washing machines, and air conditioner casings—demand extremely high aesthetic standards. The zero-spangle surface serves as an excellent substrate for coating applications (specifically for pre-painted or laminated steel). After painting or film lamination, the underlying crystalline texture does not “bleed through” to the surface, allowing for a flawless, refined, and high-gloss finish. Furthermore, its dense metallurgical structure provides superior formability and deep-drawing performance, minimizing the risk of the zinc coating peeling off during the deep-drawing process.
Market Application: As the Southeast Asian region absorbs the global shift in manufacturing supply chains, local home appliance factories are experiencing an explosive surge in demand for high-quality, coating-optimized zero spangle galvanized steel coils.
Big Spangle Galvanized Steel Coil: A Robust Shield for Construction Projects

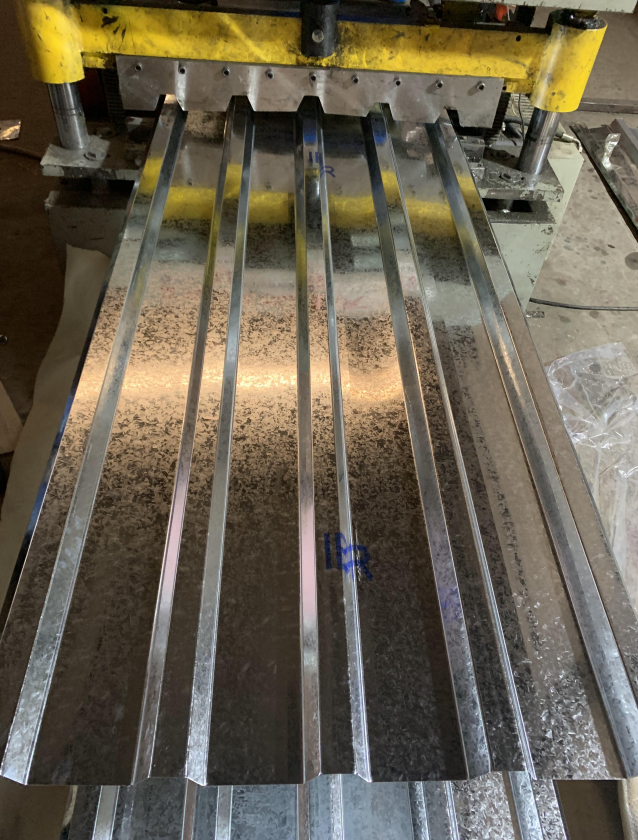

In contrast, big spangle galvanized steel coils are produced under conditions—either through natural cooling or specific controlled processes—that allow zinc crystals to grow freely. This results in distinct, visible metallic crystalline patterns resembling snowflakes or hexagonal stars.
Key Advantages: Possesses a strong, authentic metallic aesthetic; offers superior corrosion resistance even in its bare state; and is relatively more cost-effective to produce.
Why It Is Ideal for Construction: In the construction sector—including applications such as factory roofing, exterior wall panels, ventilation ducts, and structural framing—materials typically do not require a fine, high-gloss finish. Instead, they are often used in their bare state or finished with a basic color coating. The “big spangle” surface not only lends a rugged, industrial aesthetic to building materials, but its substantial zinc coating also provides long-lasting cathodic protection against rust and corrosion, even when exposed to harsh environmental elements like wind and sunlight.
Market Application: In emerging markets—such as those across Africa—infrastructure development and the construction of large-scale industrial facilities are currently in full swing. Thanks to their exceptional weather resistance, high tensile strength, and outstanding cost-effectiveness, regular spangle galvanized steel coils have become the absolute first choice for local builders.
Bomis: A Dual-Track Approach—Precisely Tailoring Solutions to Global Demand
Faced with the vastly different physical requirements for galvanized steel coils across diverse global markets, manufacturing capability stands as the sole true benchmark for evaluating a supplier.
Bomis possesses robust production line control capabilities within the galvanized steel manufacturing sector. Whether the requirement calls for the absolute flatness of “Zero Spangle” coils, or the emphasis is on the durable, classic aesthetic of “Big Spangle” coils, Bomis has successfully achieved high-quality, large-scale production for both.
Empowering Southeast Asian Appliance Manufacturing: Bomis provides a stable, high-volume supply of Zero Spangle galvanized coils—featuring smooth surfaces and superior paint adhesion properties—that perfectly meet the rigorous standards of Southeast Asian appliance manufacturers for high-precision exterior components, thereby helping them enhance the premium value of their end products.
Supporting Africa’s Infrastructure Boom: Addressing the immense demand for factory and facility construction across Africa, Bomis supplies Big Spangle galvanized coils characterized by strong zinc layer adhesion and exceptional corrosion resistance, ensuring that every structure built can stand the test of time.
Whether the application demands the ultimate surface smoothness required for consumer-grade appliances or the rugged durability essential for industrial-grade construction, Bomis leverages its large-scale production capacity and flexible process control to deliver the most precise and competitive material solutions to clients worldwide.
